What is an SPDIF Port and Why Does It Matter?
An SPDIF port (Sony/Philips Digital Interface Format) represents one of the most important digital audio connections in modern Hi-Fi systems. This standardized interface transmits uncompressed digital audio signals between devices, preserving the original sound quality without the degradation that analog connections can introduce.
Analog Audio Limitations
- Signal degradation over distance
- Susceptible to electromagnetic interference
- Multiple conversion stages reduce quality
- Limited to stereo in most cases
SPDIF Port Advantages
- Pure digital signal transmission
- Immune to electrical noise
- Supports multi-channel audio formats
- Maintains bit-perfect audio quality
The SPDIF port has become essential for audiophiles who demand pristine sound reproduction. Unlike traditional analog connections, this digital interface ensures that your music arrives at its destination exactly as the artist intended, making it a cornerstone of serious audio setups.
- ►1. What is an SPDIF Port and Why Does It Matter?
- ►2. Types of SPDIF Connections: Optical vs Coaxial
- ►3. Technical Specifications and Supported Formats
- ►4. Setting Up Your SPDIF Connection: Step-by-Step Guide
- ►5. SPDIF Port Applications in Modern Audio Systems
- ►6. Compatibility and Device Selection
- ►7. Troubleshooting Common SPDIF Port Issues
- ►8. Future of SPDIF in High-Resolution Audio
Types of SPDIF Connections: Optical vs Coaxial
SPDIF ports come in two primary forms, each with distinct characteristics that affect performance and compatibility in your audio system.

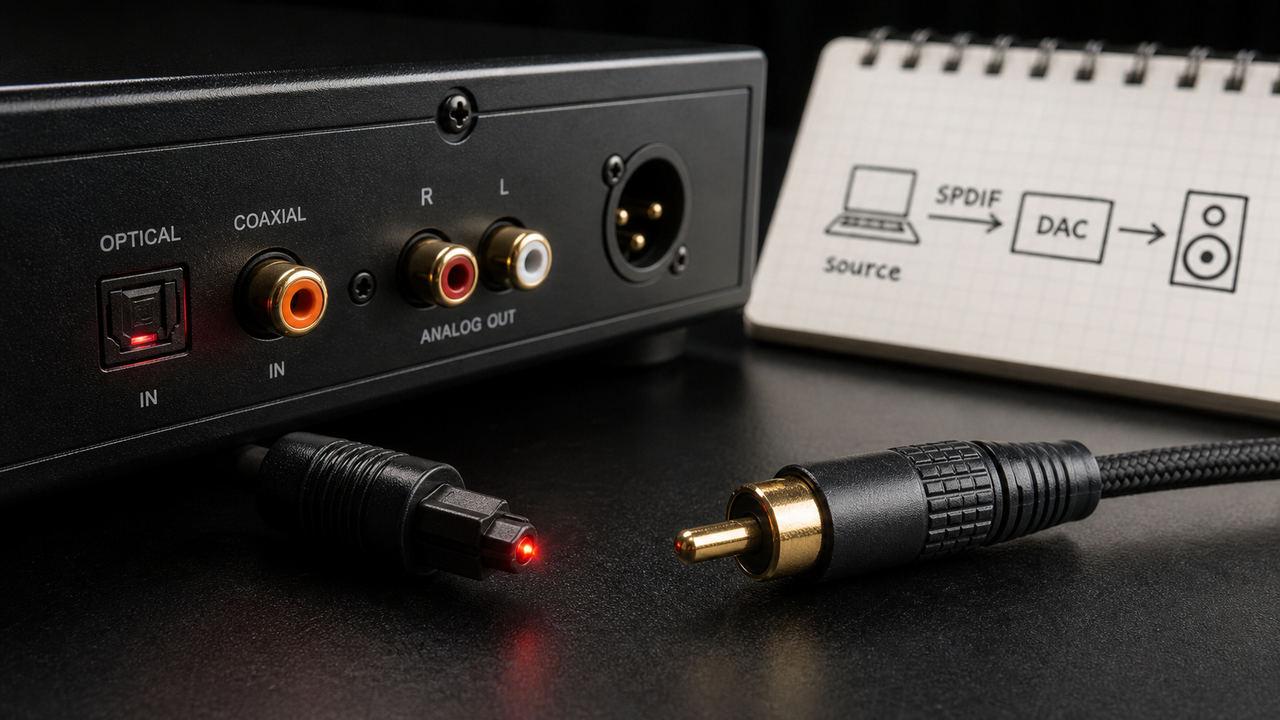

Optical SPDIF uses fiber optic cables and TOSLINK connectors to transmit audio as light pulses. This method provides complete electrical isolation between devices, eliminating ground loops and electromagnetic interference that can plague other connection types.
Coaxial SPDIF employs standard RCA cables with 75-ohm impedance to carry digital signals electrically. While potentially susceptible to interference, coaxial connections often provide slightly better jitter performance and are preferred in professional environments.
Technical Specifications and Supported Formats
Understanding SPDIF port specifications helps you maximize your audio system's potential and ensure compatibility across all components.
Sample Rate Support
Standard SPDIF handles up to 192kHz sampling rates, though most consumer content uses 44.1kHz (CD) or 48kHz (digital video) formats.
Bit Depth Capability
Supports up to 24-bit resolution, providing significantly more dynamic range than CD's 16-bit limitation.
Multi-Channel Formats
Can carry compressed surround sound formats like Dolby Digital and DTS, though PCM is limited to stereo.
Data Rate Limits
Maximum bandwidth of approximately 6.144 Mbps constrains the highest resolution formats that can be transmitted.
The SPDIF port excels at transmitting standard Hi-Res audio formats including FLAC, WAV, and ALAC files up to 24-bit/192kHz resolution. However, newer ultra-high-resolution formats like DSD require different connection methods.
Supported Formats
- PCM up to 24-bit/192kHz
- Dolby Digital (AC-3)
- DTS surround sound
- Standard Hi-Res audio files
Format Limitations
- No native DSD support
- No MQA transmission
- Stereo PCM only (no multi-channel)
- Compressed surround formats only
Setting Up Your SPDIF Connection: Step-by-Step Guide
Proper SPDIF port configuration ensures optimal audio quality and prevents common connectivity issues that can compromise your listening experience.
Choose Your Connection Type
Select optical for maximum isolation or coaxial for potentially better jitter performance, based on your equipment and environment.
Configure Source Device
Set your audio player or DAP to output digital signals through the SPDIF port, typically found in audio output settings.
Match Sample Rates
Ensure your receiving device (DAC or amplifier) can handle the sample rate being transmitted from your source.
Test and Verify
Play familiar reference tracks to confirm proper signal transmission and audio quality.
When connecting Hi-Res audio players like those in the HIFI WALKER collection, pay special attention to the digital output settings to maximize the benefits of your SPDIF port connection.
Common setup mistakes include mismatched sample rates, using poor-quality cables, and forgetting to enable digital output modes on source devices. Taking time to verify each step prevents frustrating troubleshooting sessions later.
SPDIF Port Applications in Modern Audio Systems
The SPDIF port serves multiple critical functions in contemporary audio setups, from basic stereo systems to complex home theater configurations.
Home Audio Applications
- Connecting DAPs to external DACs
- Linking CD players to amplifiers
- Integrating streaming devices
- Bypassing internal DAC circuits
Professional Uses
- Studio monitor connections
- Digital mixing console inputs
- Broadcast equipment interfaces
- Multi-room audio distribution
Audiophiles particularly value SPDIF ports for connecting portable audio players to high-end desktop systems. This configuration allows you to enjoy your carefully curated music library through reference-quality DACs and amplifiers while maintaining digital purity throughout the signal chain.
Home theater systems rely heavily on SPDIF connections to transmit surround sound formats from various sources to AV receivers. The format's ability to carry compressed multi-channel audio makes it indispensable for movie and gaming audio.
↑ Back to Top
Back to Top ↑Compatibility and Device Selection
Choosing devices with proper SPDIF port support requires understanding compatibility factors that affect system integration and performance.
When building an audio system around SPDIF connectivity, prioritize devices that explicitly support the sample rates and formats you plan to use. Not all implementations are equal – some provide better jitter control and signal integrity than others.
Future-proofing your setup means considering emerging audio formats and connection standards. While SPDIF remains relevant, newer technologies like USB Audio Class 2.0 and network audio are gaining prominence for ultra-high-resolution content.
Troubleshooting Common SPDIF Port Issues
Even properly configured SPDIF connections can experience problems. Understanding common issues helps maintain optimal audio quality and system reliability.
No Audio Output
Verify digital output is enabled on source device and receiving device is set to correct input. Check cable connections and LED indicators on optical cables.
Audio Dropouts
Usually indicates sample rate mismatch or poor cable connections. Ensure both devices support the same sample rate and replace suspect cables.
Distorted Sound
Often caused by ground loops in coaxial connections or damaged optical cables. Try different connection types or use ground loop isolators.
Format Recognition Problems
Check that receiving device supports the transmitted format. Some older equipment can't handle higher sample rates or specific encoding formats.
Cable quality significantly impacts SPDIF performance, especially over longer distances. Invest in well-constructed cables with proper impedance matching (75-ohm for coaxial) and high-quality connectors to minimize signal degradation.
Prevention Strategies
- Use high-quality cables
- Avoid excessive cable lengths
- Keep connections clean
- Match sample rates carefully
Quick Fixes
- Check all cable connections
- Verify device settings
- Try different input/output combinations
- Test with known-good cables
Future of SPDIF in High-Resolution Audio
While SPDIF port technology continues serving important roles in audio systems, evolving formats and connection methods are reshaping the digital audio landscape.
The bandwidth limitations of traditional SPDIF become apparent with newer ultra-high-resolution formats like DSD256 and 32-bit PCM files. These formats require more modern connection standards such as USB Audio Class 2.0 or specialized protocols like I2S.
SPDIF Strengths
- Universal compatibility
- Simple implementation
- Reliable for standard formats
- Cost-effective solution
Emerging Alternatives
- USB Audio for higher bandwidth
- Network audio streaming
- HDMI ARC/eARC
- Wireless high-resolution protocols
Despite newer alternatives, SPDIF ports remain valuable for their simplicity and widespread compatibility. Many audiophiles maintain systems that benefit from SPDIF's straightforward digital transmission, especially when working with standard Hi-Res audio formats that fit within its bandwidth constraints.
